Portali Series TR900
Outstanding control of one key

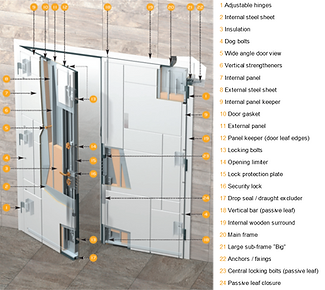

Our Series TR 900, are manufactured using a double sheet steel structure which is insulated and reinforced with vertical omega steel stiffeners, a high security multi-point locking system with a Euro profile cylinder to operate the lock.
Available in a variety of sizes both standard and customized, the full range of panels are available to ensure a comprehensive product range.
Class 3 (ENV 1627)
U= 1,8 to 1,6 W/m2K
as a function of the frame and surrounds and the type of panels / coatings
Double galvanized steel sheet (10/10) reinforced with vertical steel stiffeners
Insulation – fireproof, thermal and acoustic insulation within the door interior
Hanging side = three robust adjustable welded hinges and five dog bolts
Adjustable keep for latch bolt
Panel keeper (door leaf edges) with brown finish (option for RAL colors or stainless steel)
Soft rubber gasket for sealing in between door leaf and jambs (sealing against dust, noise and air protection)
‘Standard’ range of door furniture (available in different colors and finishes and colors)
Door limiter (door check)
Wide angled door view
Adjustable drop seal in base of door leaf
High Security Multipoint Locking with Euro Profile Cylinder
Controlled by just a single key, the locking system provides concurrent operation of a double locking bolt at the base, three on the center and two at the top (one horizontal and one vertical) of the closing side of the door leaf – the bolts themselves have been specially engineering to increase protection.
Euro-Profile Prestige cylinder and a hardened steel defender, the lock contains a patented device which will throw the lock in the event of attempted forced entry.
In the event of lost keys, replacement cylinders can be provided – it is the cylinder alone that requires replacement and this is not a complicated process.
Frame and Subframe
3mm rolled steel subframe with 12 fixing points horizontally and one vertically and adjustable boxes to ensure that the installation is plumb before the door leaves are hung.
A further feature, to ensure that the frame does not twist as a result of the weight of the door leaf, is an adjustable spacer between the main frame and the subframe at the bottom of each jamb.
Frames are finished with powder coated dark brown (RAL color finished also available including different colors internally and externally)
Variety and Flexibility
The Portali series includes doors with:
Overhead fanlights, square or arched, with either glazed or solid security panels
Security glass in a range of finishes and patterns
Electrical latch bolt for access control
Inward and outward openers
As well as the entire range of “standard” panels selection, individually designed panels are often specified to ensure that customers’ requirements are met. The range of panels includes solid or machined, plain engineered wood finishes and aluminum – the possibilities are endless
